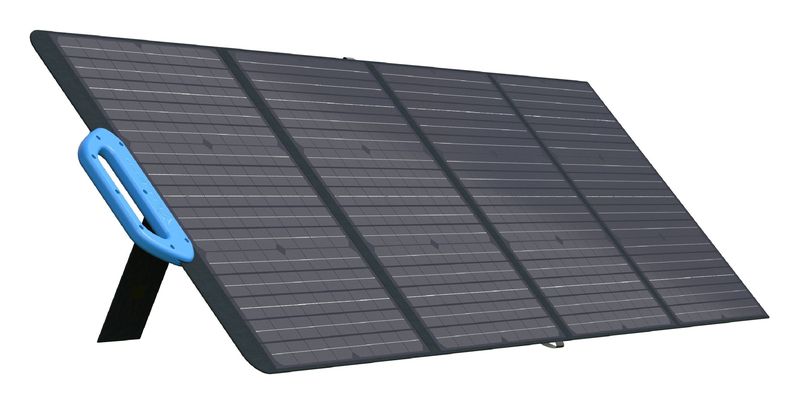

BLUETTI PV120
120W · 5.7 kg
- Voc 24.4 V
RM 999
View
Solar Panels · Malaysia
BLUETTI Solar Panels
Four folding panels, matched to your station.
Solar panels
Four Folding Panels
120W to 420W.
BLUETTI PV200
200W · 7.3 kg
- Voc 26.1 V
RM 1,599
ViewBLUETTI PV350
350W · 13.9 kg
- Voc 46.5 V
RM 2,999
ViewBLUETTI PV420
420W · 14 kg
- Voc 44.3 V
RM 3,299
ViewHow a Solar Kit Works
1
Collect
The panel turns sunlight into DC power.
2
Convert & Store
The station stores it and makes 220–240 V AC.
3
Run
Lights, fans, phones and laptops, day or night.
Why These Panels
Folds Down to Carry
The PV120 folds to 533 × 470 mm and weighs 5.7 kg; the largest, the PV420, folds to 975 × 660 × 45 mm at 14 kg.
One Plug Standard
All four use MC4 on a 3 m lead. The Premium 30 V2 needs an MC4-to-XT60 cable.
Rated for Splashes, Not Storms
PV120 and PV200: IP65 junction box; PV350: IP65 against splashes; PV420: no rating. Bring them in when it rains.
The Four Panels in Detail
Which Panel Suits Which Station
Each station takes solar within a voltage window, up to its own limit.
| Station | Solar input | PV120 | PV200 | PV350 | PV420 |
|---|---|---|---|---|---|
| Premium 30 V2 | 200 W · 12–28 V | Fits by voltage | Fits by voltage | — not paired | — not paired |
| AC50P | 200 W · 12–28 V | BLUETTI states it | BLUETTI states it | — not paired | — not paired |
| AC70P | 500 W · 12–58 V | Fits by voltage | Fits by voltage | BLUETTI states it | Fits by voltage |
| Premium 100 V2 | 1,000 W · 12–60 V | Fits by voltage | Fits by voltage | Fits by voltage | Fits by voltage |
| AC180P | 500 W · 12–60 V | Fits by voltage | BLUETTI states it | BLUETTI states it | BLUETTI states it |
| AC240P | 1,200 W · 11–60 V | Fits by voltage | Fits by voltage | Fits by voltage | Fits by voltage |
| Premium 200 V2 | 1,000 W · 12–60 V | Fits by voltage | Fits by voltage | Fits by voltage | Fits by voltage |
| AC200P L | 1,200 W · 12–145 V | BLUETTI states it | BLUETTI states it | BLUETTI states it | Fits by voltage |
BLUETTI BLUETTI pairing · Fits voltage fits · — no pairing
Solar sets
Station and Panel Sets
Each part priced separately.
BLUETTI Pairing
AC50P + PV200
504Wh station · 200W of solar
- BLUETTI AC50P
RM 1,999
- BLUETTI PV200
RM 1,599
BLUETTI Pairing
AC70P + PV350
864Wh station · 350W of solar
- BLUETTI AC70P
RM 2,999
- BLUETTI PV350
RM 2,999
BLUETTI Pairing
AC180P + PV420
1,440Wh station · 420W of solar
- BLUETTI AC180P
RM 4,899
- BLUETTI PV420
RM 3,299
Solar Questions
Which panel suits my station?
See the table above: the panel's voltage must fit the station's solar window.
Can I connect more than one panel?
Yes, for example six PV120, five PV200 or three PV350 on the AC200P L; two PV200 on the AC180P. Panels in series add voltage. Ask us before you wire a set.
Are the panels waterproof?
No. PV120 and PV200: IP65 junction box; PV350: IP65 against splashes; PV420: no rating. Keep them out of the rain.
How much will a panel give me in Malaysian sun?
Less than its rating. Heat, cloud, dust and angle all reduce output.
